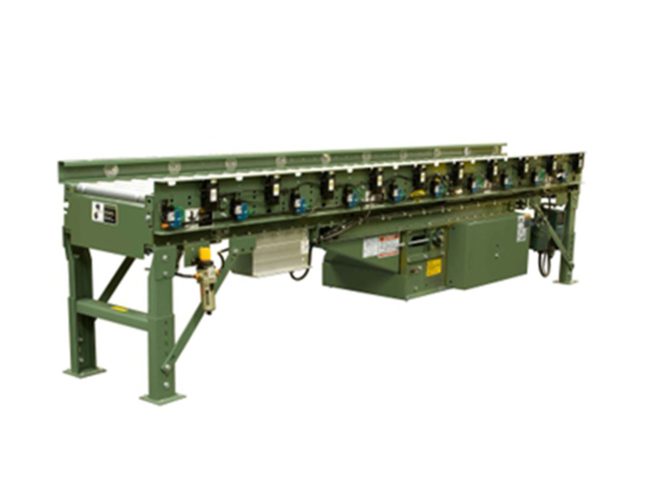

ABEZ Zero Pressure Medium Flat Belt

ABEZ – Medium Duty Flat Belt (EZLogic®)

The Model ABEZ is a horizontal live roller conveyor, designed for applications that require product accumulation without a build-up of line pressure. Singulation feature allows products to be easily removed from any location on the conveyor.

• Bed – 6-1/2″ deep x 12 ga. formed steel channel frame powder painted
• Rollers – 1.9″ dia. x 16 ga.galvanized tread rollers spaced every 3″ and an EZLogic® Accumulation Module located in each zone
• Overall Frame Widths: 18″, 20″, 22″, 24″, 26″, 28″, 30″, 34″, 36″, 40″, & 42″
• Center Drive (standard)
• Motor – 1/2 HP standard – 2 HP max
• Adjustable Floor Supports available
• Capacity – Maximum load per linear foot of conveyor; 150 lbs. No minimum load
• Accumulation Zones – 12″, 18″, 24″, 30″, & 36″ Long Air Controlled
