ViperSort Right Angle Sort

ViperSort Right Angle Sort

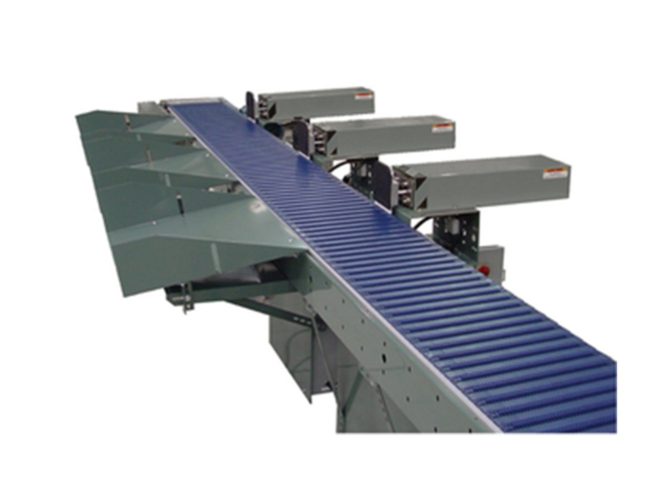

The Model ViperSort is a right-angle sortation conveyor used to sort small- to medium-sized products. The ViperSort utilizes a patented design that enables the sorting of cylindrical products, extremely thin items such as blister packs, vinyl envelopes, and other problematic items.

  • Overall Widths: 13-1/4″, 15-1/4″, 17-1/4″ & 19-1/4″
  • Bed – 6-3/8″ deep x 12″ ga. formed steel bed powder painted with aluminum guide rail extrusion, capped with UHMW wearstrip placed on bed for carry way.
  • Air Requirements – 60 p.s.i.
  • Motor – 230/460V-3Ph. 60HZ. HP based on speed and length requirements
  • Capacity – Maximum unit package weight 25 lbs. For maximum conveyor distributed load, contact factory.
  • Adjustable Floor Supports available

Call for Pricing: (800) 426-3888
