TSP 6500 Series

TSP 6500 Series

Turret Stockpicker

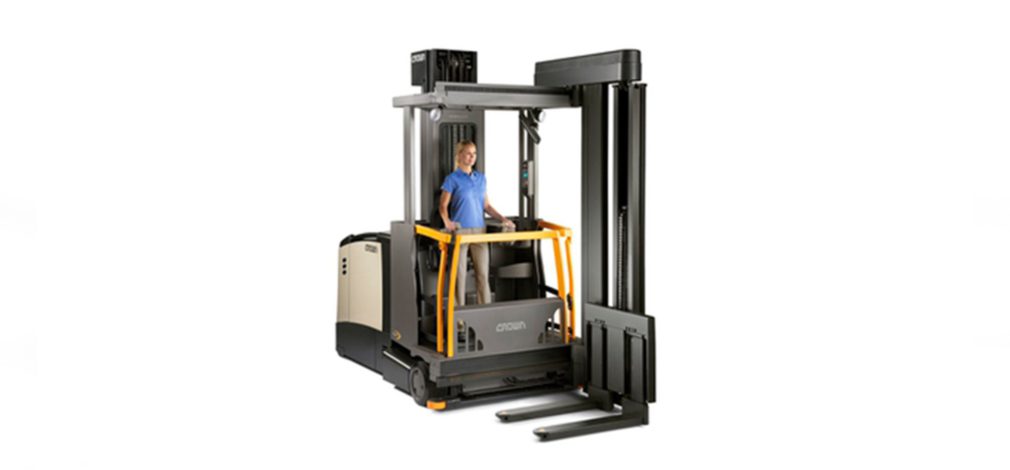

TSP 6500 Turret Forklift — Comfortable, Stable,
and Energy Efficient

The TSP 6500 Series offers versatility in a turret forklift. This model can handle a wide range of warehousing challenges, including full pallet handling and case picking. Industry-unique features like the MonoLift™ mast, MoveControl® seat, and Crown’s regenerative lowering & braking systems give you the edge to get more done while using less energy.

Very Versatile: Very Narrow-Aisle Forklift

Lifting to heights of 531″ / 44′ and with a maximum capacity of 3300 pounds, the 48 volt TSP 6500 is built for very narrow-aisle forklift operation. It needs only inches of room to maneuver confidently, quickly, and accurately.

Free-lift (TF), no free-lift (TN), and triple-telescopic (TT) mast options are available to suit most very narrow-aisle turret forklift applications.

Call for Pricing: (800) 426-3888

Power

Heavy duty 48-volt electrical system.

https://www.nwhs.com/wp-content/uploads/TSP7000-001b-Medium_Res._jpg1.jpg

Energy Usage

The TSP 6500 Series offers Crown’s new Regenerative Lower System to safely and smoothly lower loads and reclaim 15% more energy. Upon lowering, hydraulic oil is passed through the pump in the opposite direction, turning the lift motor into an onboard generator. This increases available power, which translates into longer shift lives.
